5 Functions Transfer wheelchair Lift for Home, Bathroom,Toilet
MODEL NO.:CA6129
Original design intention:
It is designed to solve the conversion of the elderly, pregnant women, people with inconvenient legs and feet, and some disabled people in their daily life. It can solve the problem of users moving from bed to sofa, bathroom, toilet, or outdoor and other scenes. This product also has the function of lifting and lowering the wheelchair through the toilet, which avoids the trouble and risk caused by users' frequent conversion of different accessories in different scenes, and also reduces the workload of nursing staff.
Appearance description:
The powder white main frame with black backrest and black plastic parts is simple and beautiful!
Structure description:
The whole frame is made of 2.0 thick steel pipe.
The front wheel is equipped with two 5-inch directional double row band brake wheels, and the rear wheel is equipped with two 3-inch universal band brake wheels.
The seat plates are divided into left and right groups, which can be opened, closed and fixed outward.
After the left and right seat plates are closed, there are automatic latch locks and alloy webbing buckles, which are safe and secure. The products can be quickly disassembled and easily carried.
Function description:
The height of the product seat can be raised and lowered by hand, and the height adjustment is labor-saving and fast.
The brake release of the four double row wheels with brakes is step down, which is convenient for use.
The front and back of the product are equipped with hand push handles, which are convenient for use in different scenes.
Product parameters：
Width:60cm
Seat width: 48.5cm
Seat depth: 39.5cm
Rear wheel INCH: 3"
Front wheel INCH: 5"
Seat height：41~58 cm
Length: 78 cm
Height: 84~101 cm
Packaging: 90.5*59.5*33.5 cm
Pcs/ctn: 1
Maximum weight capacity KGS: 100KG
NX/GX KGS: 28.5/31.5KG
Certificate：ISO13485/ ISO9001/ TUV/FDA/ CE

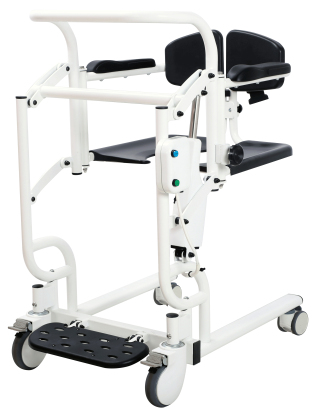

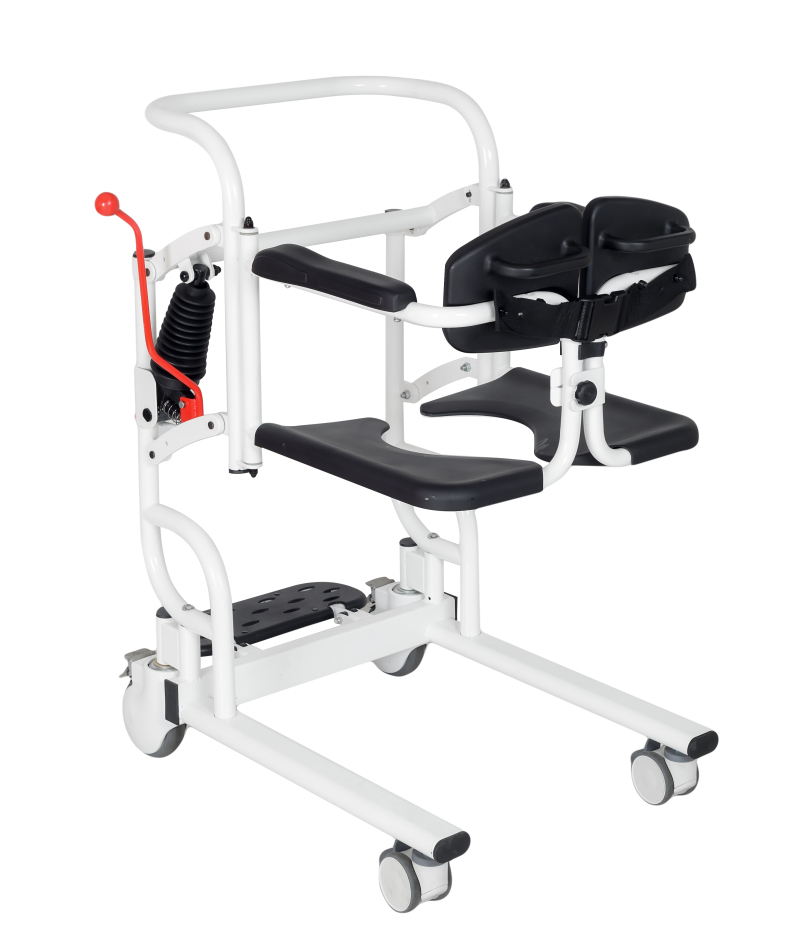

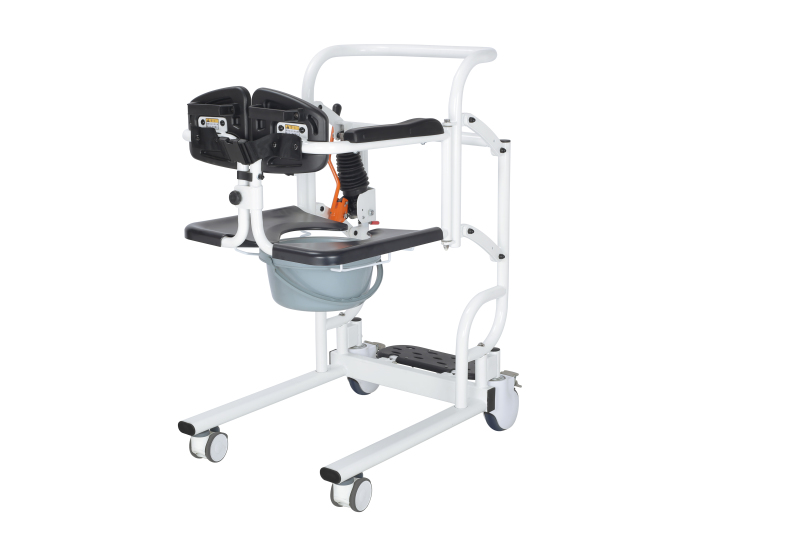

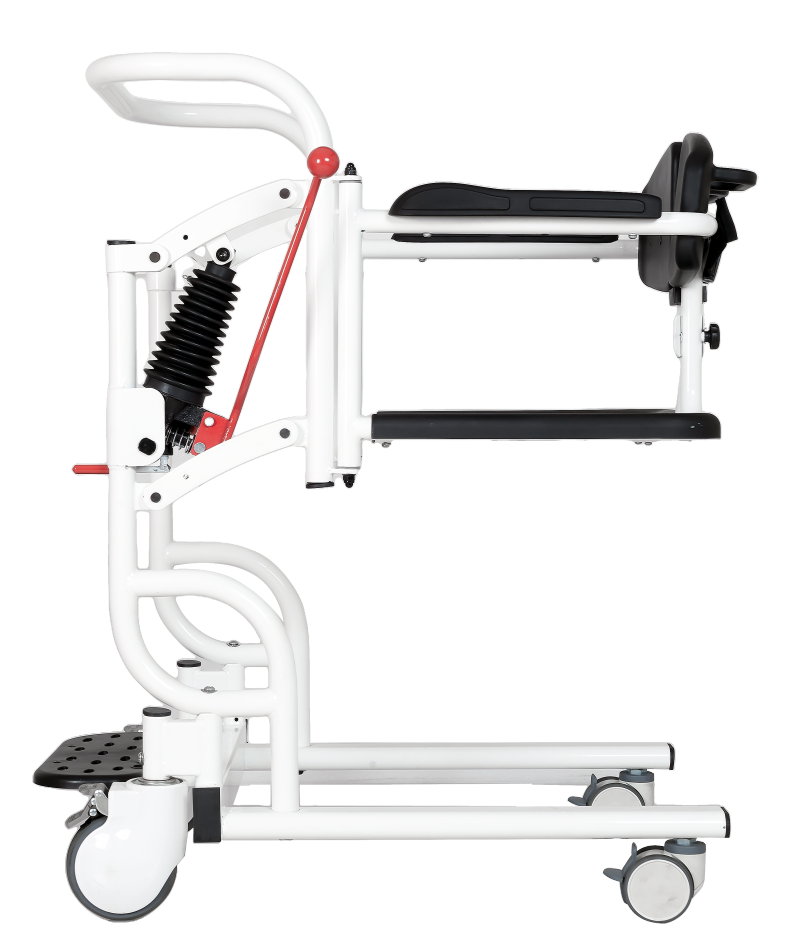

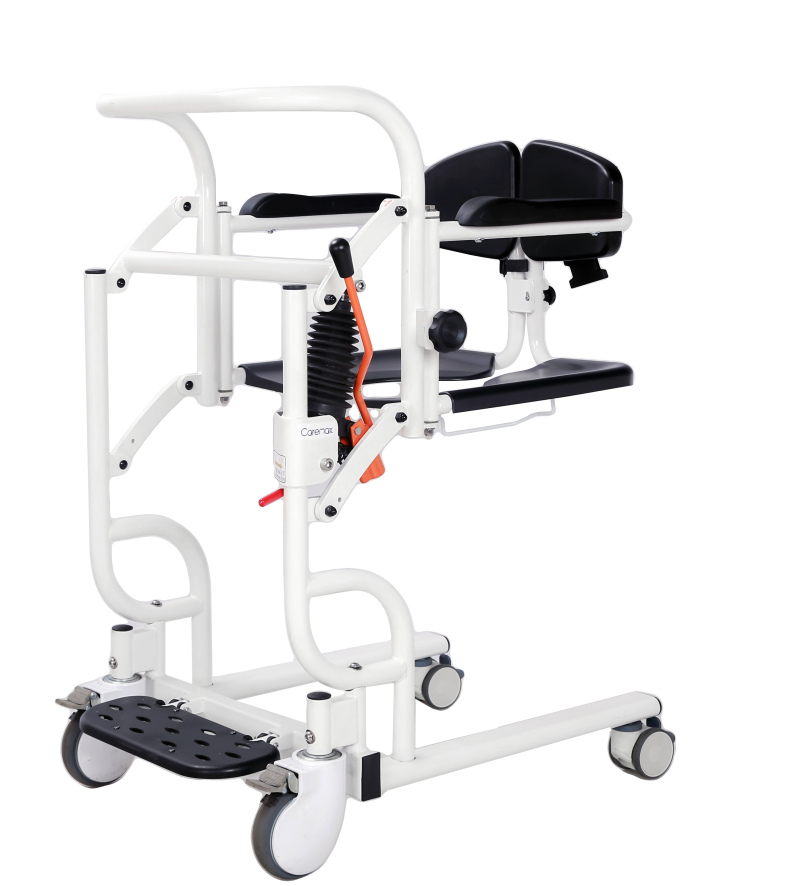

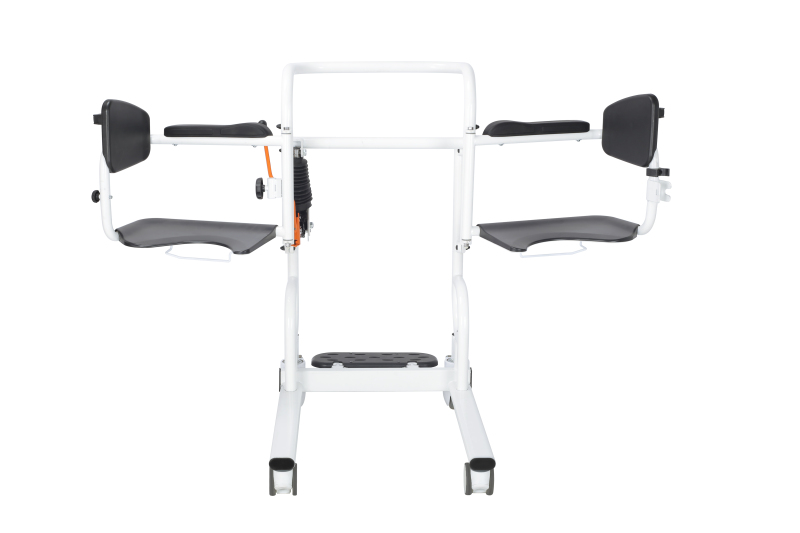

Product detail picture:
